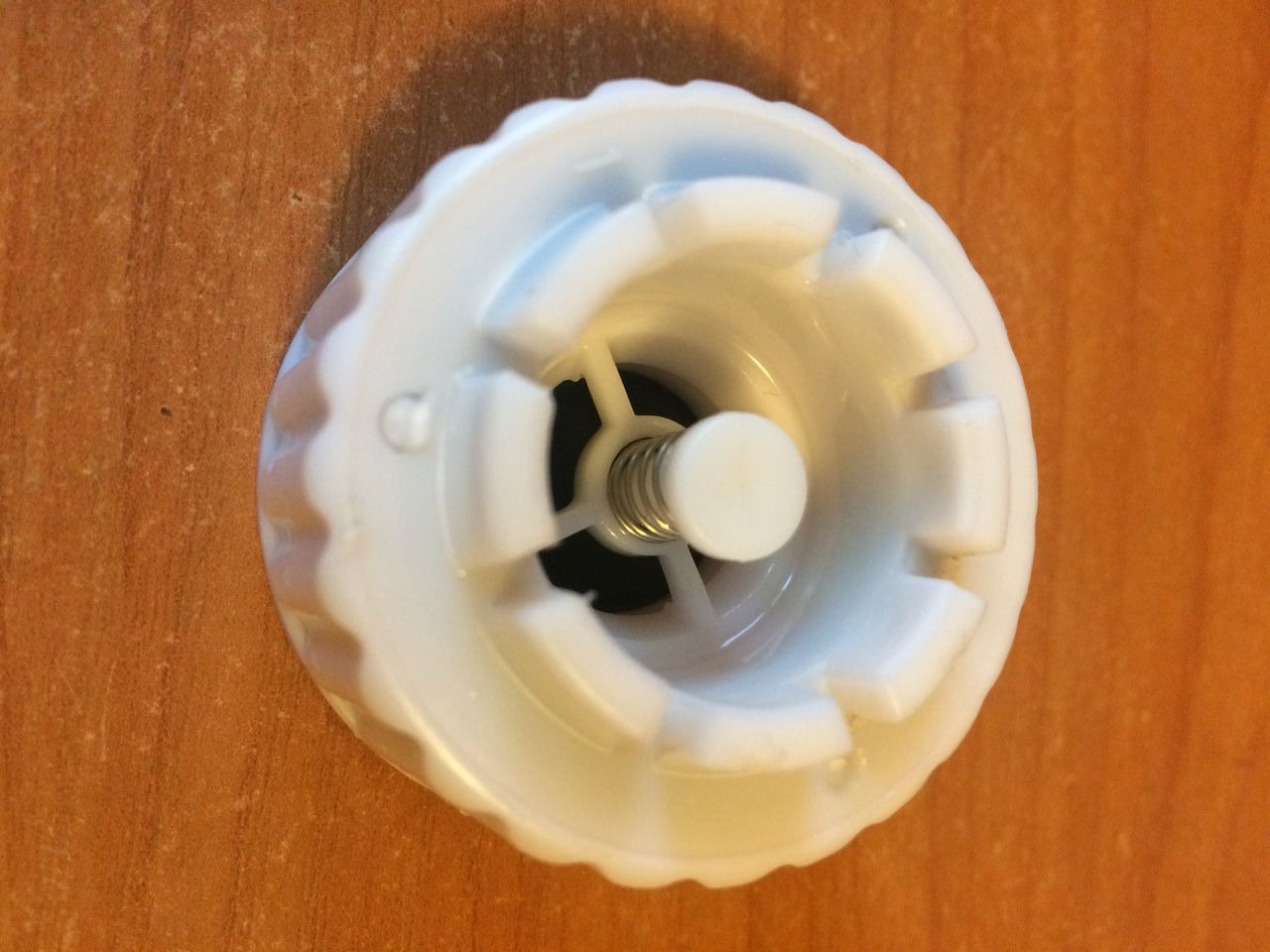

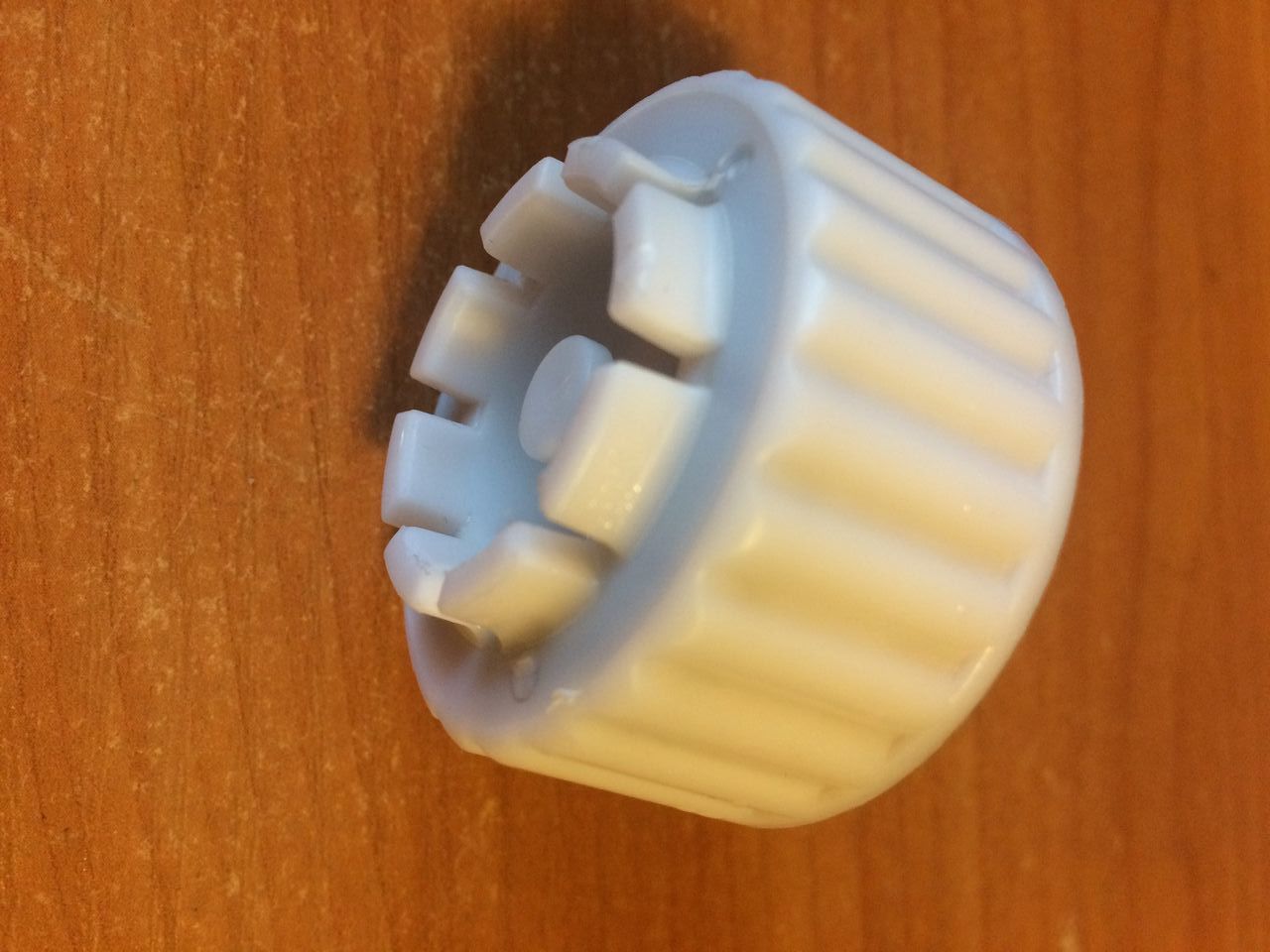

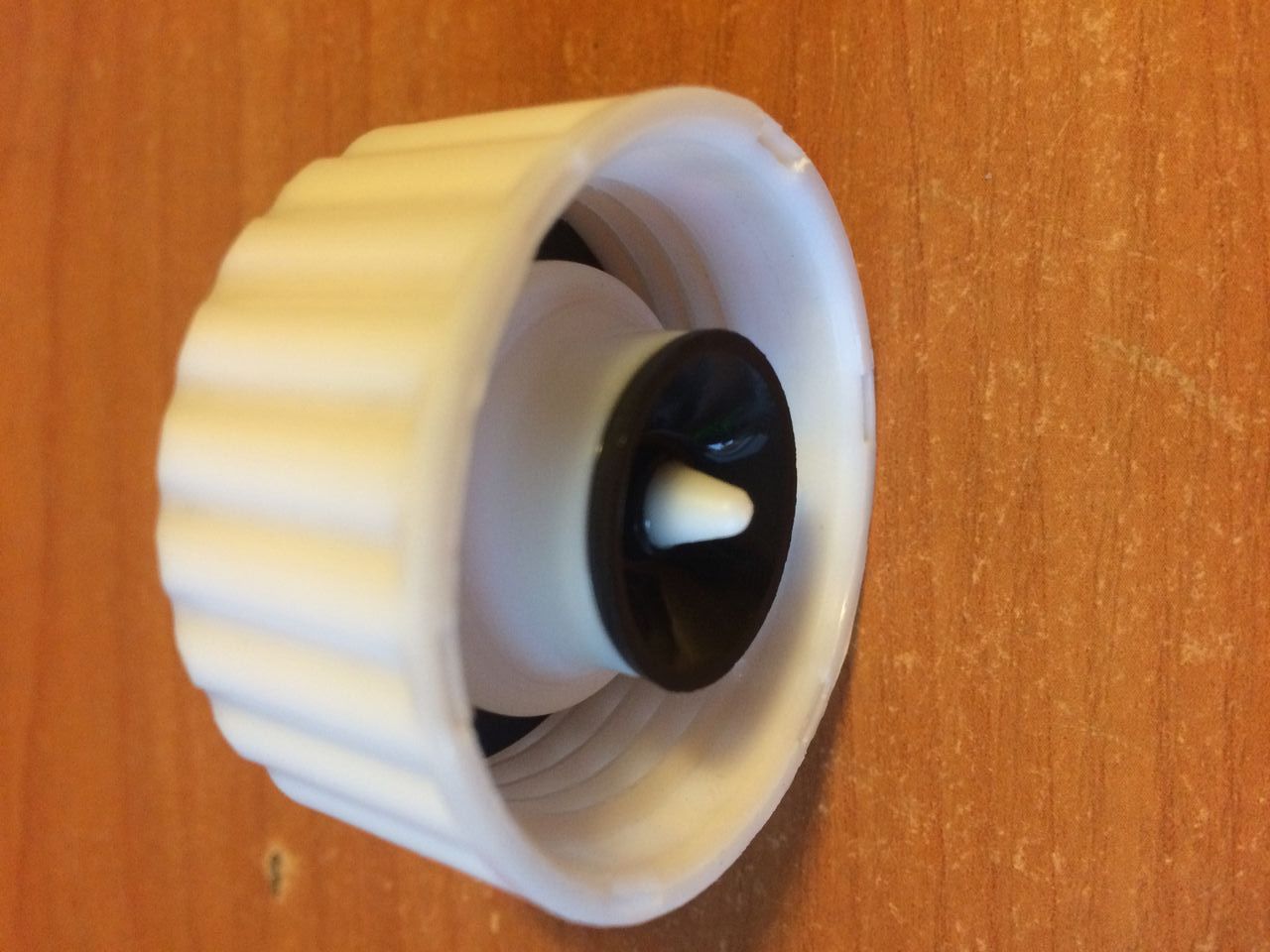

Крышка резервуара для воздухоочистителя MCK75J (1901245 WATER TANK CAP ASSY)
Крышка резервуара для воздухоочистителя MCK75J (1901245 WATER TANK CAP ASSY)

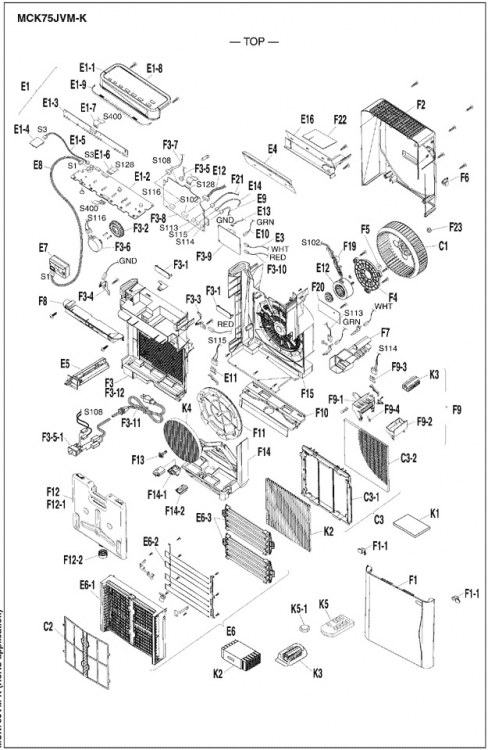

| No. | Index | Parts No. | Repair Info. | Parts Name | Drawing No. |
| C1 | 1900925 | Крыльчатка для MCK75 | 3P225822-1 | ||
| C2 | A | 1827859 | AIR FILTER | 2P179581-3 | |
| C3 | 1967524 | B27B103B | Фильтр для MCK75 в сборе | 3P185368-4 | |
| C3-1 | 1984822 | SET PLATE/ FILTER | 1P179468-1 | ||
| C3-2 | A | 2076685 | Деодорирующий фильтр MCK75 | 3P182490-2 | |
| E1 | COVER ASSY./ OPERATION SIGN | 1P238880-1 | |||
| E1-1 | 1921047 | Панель индикации MCK75 | 1P234996-1 | ||
| E1-2 | A | 1921054 | Плата управления MCK75 | 2P229756-3 | |
| E1-3 | A | 1921061 | Панель светодиодов индикации MCK75 | 3P229758-2 | |
| E1-4 | A | 2195416 | HUMIDITY SENSOR ASSY. | 4EB86011-1 | |
| E1-5 | 1900949 | WIRE HARNESS (FOR TEMPERATURE/HUMIDITY SENSOR) | 4P228416-1 | ||
| E1-6 | 1900956 | WIRE HARNESS (FOR DISPLAY) | 4P228415-1 | ||
| E1-7 | 1921078 | WIRE HARNESS (FOR DISPLAY) | 4P228415-3 | ||
| E1-8 | 1921085 | COVER/ OPERATION SIGN | 3P240547-1 | ||
| E1-9 | 1921092 | Индикатор для MCK75 | 2P233378-1 | ||
| E3 | 1900970 | WIRE HARNESS (FOR HVU) | 4P228419-2 | ||
| E4 | 1900987 | COVER/ SWITCH BOX | 3P230352-1 | ||
| E5 | 1900994 | DISCHARGE PLATE UNIT ASSY. | 3F011307-2 | ||
| E6 | 1997378 | FIXING FRAME ASSY./ IONIZER WIRE | 2P232707-2 | ||
| E6-1 | FIXTURE/ IONIZER WIRE | 1P231207-2 | |||
| E6-2 | 1735099 | Ионизатор MCK75 IONIZER WIRE | 4P142431-3 | ||
| E6-3 | E1090022-1 | B27B103B | DUST COLLECTING ELECTRODE PLATE ASSY. | 3P185434-1 | |
| E7 | A | 1661763 | Сенсор для MCK75 DUST SENSOR | 3EB86010-2 | |
| E8 | 1921117 | WIRE HARNESS (FOR DUST SENSOR) | 4P238914-1 | ||
| E9 | 1901036 | WIRE HARNESS (FOR POWER SUPPLY LIMIT SWITCH) | 4P228418-1 | ||
| E10 | 1901043 | WIRE HARNESS (FOR GROUND) | 4P228420-1 | ||
| E11 | A | 2059293 | LIMIT SWITCH | 3SB45572-1 | |
| E12 | A | 1921124 | DC FAN MOTOR | 3SB40679-1 | |
| E13 | 1901050 | WIRE HARNESS (FOR GROUND) | 4P228420-2 | ||
| E14 | 1901067 | WIRE HARNESS (FOR POWER SUPPLY LIMIT SWITCH) | 4P228418-2 | ||
| E16 | 1921131 | INSULATION SHEET/ SWITCH BOX | 1P227650-2 | ||
| F1 | 1921148 | FRONT PANEL ASSY. | 2P238634-1 | ||
| F1 | FRONT PANEL ASSY. | 2P242054-1 | |||
| F1-1 | 1921155 | FIXING PLATE/ FRONT PANEL | 3P184822-2 | ||
| F2 | 1921162 | REAR PANEL ASSY. | 1P227486-2 | ||
| F3 | FRAME ASSY. | 1P239700-1 | |||
| F3-1 | 1921186 | CAP | 3P230080-2 | ||
| F3-2 | 1901120 | GEAR | 3P227651-1 | ||
| F3-3 | 1734779 | CONTACT SWITCH | 4P181445-1 | ||
| F3-4 | 1901137 | EARTH PLATE | 4P230351-1 | ||
| F3-5 | 1901144 | WIRE HARNESS ASSY. (FOR SAFETY SWITCH) | 4P228414-1 | ||
| F3-5-1 | A | 1901151 | SWITCH | 3SB45591-1 | |
| F3-6 | A | 1921193 | Мотор жалюзи AC INDUCTOR MOTOR | 3SB40681-1 | |
| F3-7 | 1901168 | WIRE HARNESS (FOR HUMIDIFYING GEARED MOTOR) | 4P228421-1 | ||
| F3-8 | A | 1921201 | PRINTED CIRCUIT ASSY. (POWER SUPPLY) | 2P229755-2 | |
| F3-9 | A | 2016962 | PRINTED CIRCUIT ASSY. (HVU) | 3P183343-1 | |
| F3-10 | 1901175 | WIRE HARNESS (FOR HVU) | 4P228419-1 | ||
| F3-11 | 1921218 | POWER CORD ASSY. | 3P238834-1 | ||
| F3-12 | 1919448 | FRONT FRAME | 1P227483-3 | ||
| F4 | 1949780 | SET PLATE/ FAN MOTOR | 2P114965-1 | ||
| F5 | 156697J | PLAIN WASHER | 4P114690-2 | ||
| F6 | 1921225 | FIXTURE/ HOLDER | 2P203632-4 | ||
| F7 | 1921232 | GUIDE ASSY. | 3P230073-2 | ||
| F8 | 1921249 | SWITCH COVER ASSY. | 2P238881-1 | ||
| F9 | 1921256 | HOLDER ASSY. | 2P232705-2 | ||
| F9-1 | GUIDE/ HOLDER | 1P231205-2 | |||
| F9-2 | 1923632 | HOLDER | 2P241834-1 | ||
| F9-3 | A | 2059293 | LIMIT SWITCH | 3SB45572-1 | |
| F9-4 | 1827866 | SPRING | 4P205982-1 | ||
| F10 | 1921263 | LEG | 1P227482-2 | ||
| F11 | 1901221 | HUMIDIFYING ROTOR | 1P230037-1 | ||
| F12 | 1901238 | WATER TANK ASSY. | 3P232716-1 | ||
| F12-1 | WATER TANK | 1P227478-1 | |||
| F12-2 | 1901245 | WATER TANK CAP ASSY. | 3P232718-1 | ||
| F13 | 1901252 | SHAFT | 2P230077-1 | ||
| F14 | 1921270 | WATER PAN ASSY. | 1P230065-2 | ||
| F14-1 | A | 1901276 | FLOAT SWITCH ASSY. | 3P232732-1 | |
| F14-2 | 1921287 | RESIN CASE ASSY. | 3P232734-1 | ||
| F15 | 1921294 | CASING FRAME | 2P241118-1 | ||
| F19 | 1921302 | COVER | 2P230076-2 | ||
| F20 | 1907034 | DRIP PROOF PLATE | 4P233780-1 | ||
| F21 | A | 1907041 | PROXIMITY SENSOR | 3SB45641-1 | |
| F22 | 1907058 | DRIP PROOF PLATE | 4P234915-1 | ||
| F23 | 043709J | LOCK NUT | TU40031-2 | ||
| K1 | OPERATION MANUAL | 3P234570-1 | |||
| K2 | A | 1932131 | FILTER | 4P229884-5 | |
| K3 | 99A0393 | ACCESSORY SET (DEODORIZING CARTRIDGE) | KAC985A4W | ||
| K4 | A | 99A0495 | HUMIDIFYING ELEMENT | KNME998A4 | |
| K5 | A | 1921326 | REMOTE CONTROLLER ASSY. | 3P207289-4 | |
| K5-1 | 1364024 | BATTERY | 4EB77001-1 |
| В упаковке | 1 шт |
